Fire Extinguishing Pipe Marker PMF 01a

As low as £6.50
In stock
SKU
PMFA0001

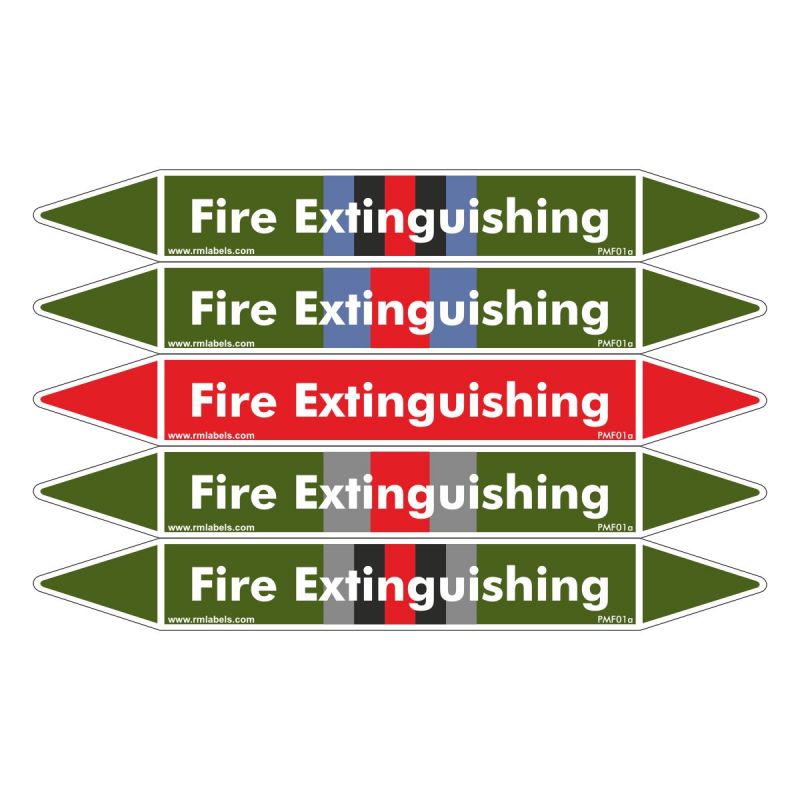

Self adhesive vinyl Fire Extinguishing pipe marker with two directional arrows. This pipe marker is available in five different styles depending on the fire safety system being used in order to comply with the new BS1710 2014 standard for pipework containing water.


For Potable Fire Safety Systems derived from the Public Water Supply the pipe marker has a green 12-D-45 background with an auxiliary blue 18-E-53 centre band and a red 04-E-53 band in the middle of the pipe marker. The text is printed over the centre of the pipe marker in white.


For Potable Fire Safety Systems derived from Any Other Source the pipe marker has a green 12-D-45 background with a flint grey 00-A-09 centre band and a red 04-E-53 band in the middle of the pipe marker. The text is printed over the centre of the pipe marker in white.


For Non Potable Fire Safety Systems derived from the Public Water Supply the pipe marker has a green 12-D-45 background with auxiliary blue 18-E-53, red 04-E-53 and black 00-E-53 centre bands. The text is printed over the centre of the pipe marker in white.


For Non Potable Fire Safety Systems derived from Any Other Source the pipe marker has a green 12-D-45 background with flint grey 00-A-09, red 04-E-53 and black 00-E-53 centre bands. The text is printed over the centre of the pipe marker in white.


For Fire Safety Systems not containing water the pipe marker has a red 04-E-53 background with white text.


Colours conform to BS1710:2014 and BS4800:2011


Available in 3 sizes with discounted prices when you buy 20 or more pipe markers, and a further discount if you buy 50 or more pipe markers:


Size A: 27mm high x 138mm long + arrows (overall length 215mm) £1.75 each

20+ £1.60 each, 50+ £1.50 each


Size B: 40mm high x 275mm long + arrows (overall length 375mm) £3.70 each

20+ £3.45 each, 50+ £3.15 each


Size C: 60mm high x 450mm long + arrows (overall length 600mm) £6.50 each

20+ £5.85 each, 50+ £5.40 each


Sizes A and B are sold in packs of 5 pipe markers, Size C pipe markers are sold in singles


Cut off the relevant arrow to indicate the direction of flow.


Size A: Suitable for pipework and any lagging up to 50mm diameter

Size B: Suitable for pipework and any lagging up to 100mm diameter

Size C: Suitable for pipework and any lagging above 100mm diameter


Choose the size you require from the drop down box below and the correctly coloured pipe marker for the type of Fire Safety System, and then add the quantity you want to the shopping basket. Any discounts available will be shown in the shopping basket.




Please note when viewing the pipe markers online the colours may vary
